Water Storage Tanks

Blow moulding is a process for creating hollow plastic products made from thermoplastic materials. The process has two main components which is first heating & then inflating. The melted plastic is placed between two dies that has the shape of the tank. Compressed Air is then passed allowing the plastic to expand to the shape of the mould. Once the plastic takes the shape of the tank and is hardened, the mould is opened and the tank is ejected. This process of making water storage tanks is examined under Plasto’s expert and made sure that customers get error free products.

Features:

Blow Moulded Tanks

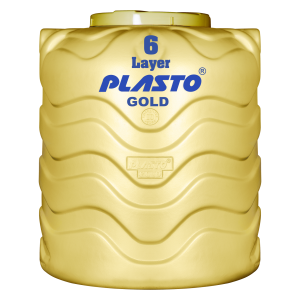

Plasto Gold 6 Layer Vertical
NEW EASY CLEAN TANK 1000 L

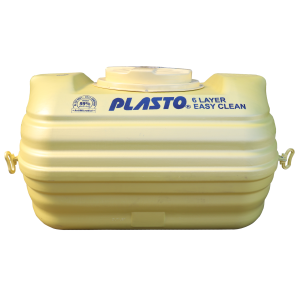

Plasto Gold 6 Layer Easy Clean Tank
3-layer-ruf-tuf

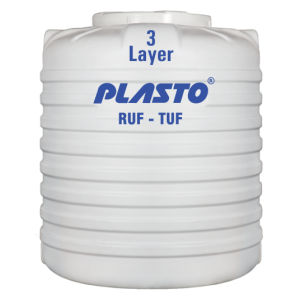

Plasto 3 Layer Ruf-Tuf Tank
Plasto 2 layer tank

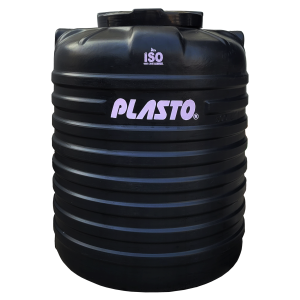

Plasto 2 Layer Tank
Blow-Moulded-Loft-Tank

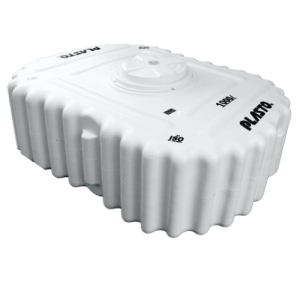

Plasto Blow Moulded Loft Tank
Plasto Easy Clean Tank
Plasto Gold 6 Layer Easy Clean Tank

Roto Moulded Tanks

PLASTO-4-LAYER-ROTO-MOULDED-FOAM-TANK-300x300

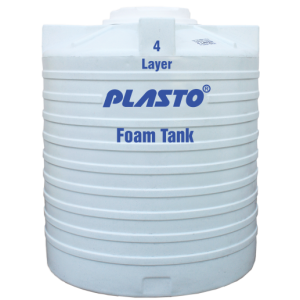

Plasto 4 Layer Foam Tank
PLASTO-2-LAYER-ROTO-MOULDED-ISI-TANK-300x300

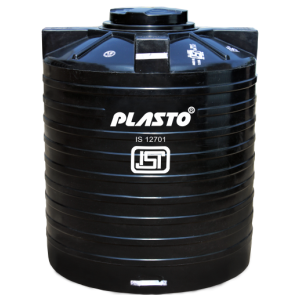

Plasto 2 Layer ISI Tank
PLASTO-UNDERGROUND-TANK-300x300

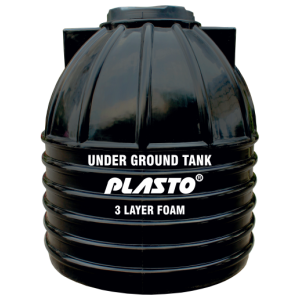

Plasto 3 Layer Underground Tank
PLASTO-2-LAYER-ROTO-MOULDED-NON-ISI-TANK-300x300

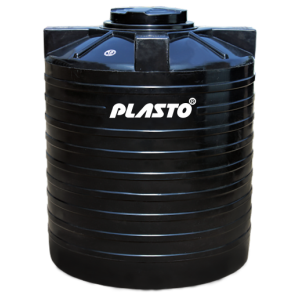

Plasto 2 Layer & 3 Layer Non-ISI

Tank Filters & Tank Lids

Plasto over head tank filter

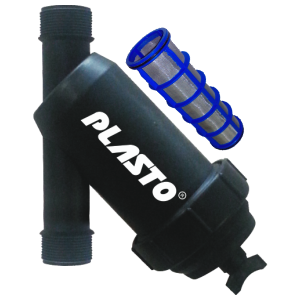

OverHead Water Tank Filter & Cartridge
rain water harvesting filter

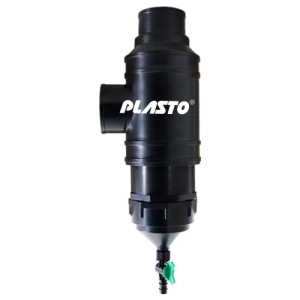

Rain Water Harvesting Filter
TANK LID

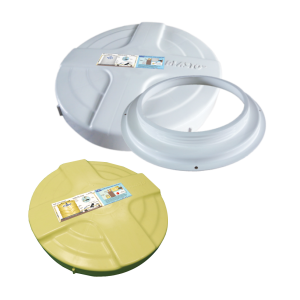

Tank Lids
Capacity (L) Diameter (MM) Height (MM)
300 L 728 856
500 L 839 1042
750 L 966 1169
1,000 L 1,093 1,220
1,500 L 1,220 1,500
2,000 L 1,321 1,600
Capacity (L) Length (MM) Width (MM) Height (MM)
500 L 1,170 920 638
750 L 1,380 1,080 732
1000 L 1,510 1,155 813
Capacity (L) Diameter (MM) Height (MM)
100 L 535 576
200 L 536 979
225 L 686 661
300 L 686 864
500 L 864 1,093
750 L 966 1,169
1,000 L 1,093 1,220
1,500 L 1,220 1,423
2,000 L 1,347 1,550
Capacity (L) Diameter (MM) Height (MM)
500 L 864 1,093
750 L 966 1,169
1,000 L 1,093 1,220
1,500 L 1,220 1,423
2,000 L 1,347 1,550
Capacity (L) Length (MM) Width (MM) Height (MM)
200 L 966 610 410
300 L 1,195 800 440
400 L 1,240 870 430
500 L 1,448 940 458
750 L 1,600 1,006 575
1,000 L 1,840 1,162 580
Capacity (L) Length (MM) Width (MM) Height (MM)
500 L 1,194 813 712
750 L 1,347 890 813
1000 L 1,474 1,042 890
Capacity (L) Diameter (MM) Height (MM)
500 L 864 1,016
750 L 1,016 1,093
1,000 L 1,093 1,245
1,500 L 1,270 1,372
2,000 L 1,372 1,524
3,000 L 1,550 1,728
5,000 L 1,880 2,083
10,000 L 2,236 2,921
Capacity (L) Diameter (MM) Height (MM)
300 L 737 889
500 L 889 1,016
700 L 1,016 1,093
1,000 L 1,118 1,270
1,500 L 1,245 1,448
2,000 L 1,372 1,626
3,000 L 1,550 1,931
5,000 L 1,855 2,083
10,000 L 2,236 2,921
Capacity (L) Diameter (MM) Height (MM)
500 L 889 1,067
1,000 L 1,143 1,296
2,000 L 1,448 1,651
5,000 L 1,956 2,185
Capacity (L) Diameter (MM) Height (MM)
3,000 L 1,550 1,728
5,000 L 1,880 2,081
10,000 L 2,236 2,921

Over Head Tank Filter

Size (MM) MRP Qty/Box
25 MM Rs. 512/- 12
32/40 MM Rs, 1,699/- 06
50 MM Rs. 1,702/- 06



Cartridge

Size (MM) MRP Qty/Box
25 MM Rs. 241/- 1
32/40 MM Rs. 659/- 1

Rain Water Harvesting Filter

Size (MM) MRP
75 MM Rs. 6,060/-
90 MM Rs. 6,064/-
110 MM Rs. 7,513/-
Threaded Tank Lids SIZE (MM) RATE
Threaded Lid Black (Blow) 500 L to 2000 L 450 MM Rs. 258/-
Threaded Lid White (Blow) 500 L to 2000 L 450 MM Rs. 250/-
Threaded Lid Gold (Blow) 500 L to 2000 L 450 MM Rs. 254/-
Threaded Lid White (Blow) 225 L to 300 L 400 MM Rs. 242/-
Threaded Lid Easy Clean Gold 400 MM Rs. 256/-
Threaded Lid with Ring for New Easy Clean Gold 1000 L 400 MM Rs. 424/-
Threaded Lid with Ring White (Roto) 500L to 5000L 400 MM Rs. 400/-
Threaded Lid with Ring Black (Roto) 3000L to 5000 L 400 MM Rs. 410/-
Threaded Lid with Ring Blue (Roto) 3000L to 5000 L 400 MM Rs. 420/-
ISI LID 580 MM Rs. 450/-

Loft Lids SIZE (MM) RATE
Loft Lid (200L to 500 L) 315 MM Rs. 82/-
Loft Lid White (750L to 1000 L) 400 MM Rs. 154/-
Blue Lid (Roto) 400 MM Rs. 136/-
Black Lid (Roto) 400 MM Rs. 110/-
